Home Decor HardwareHinges

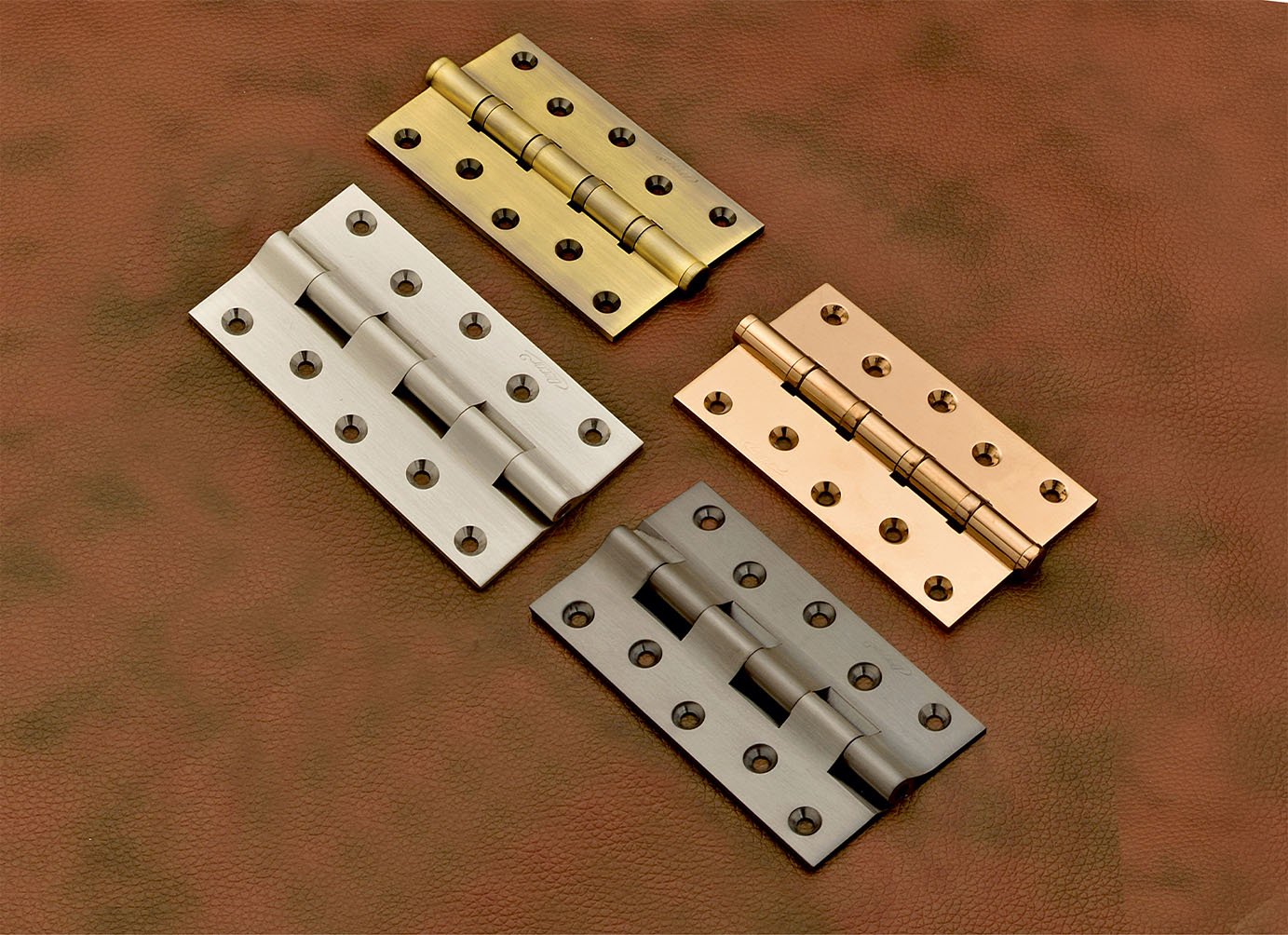

Finishes

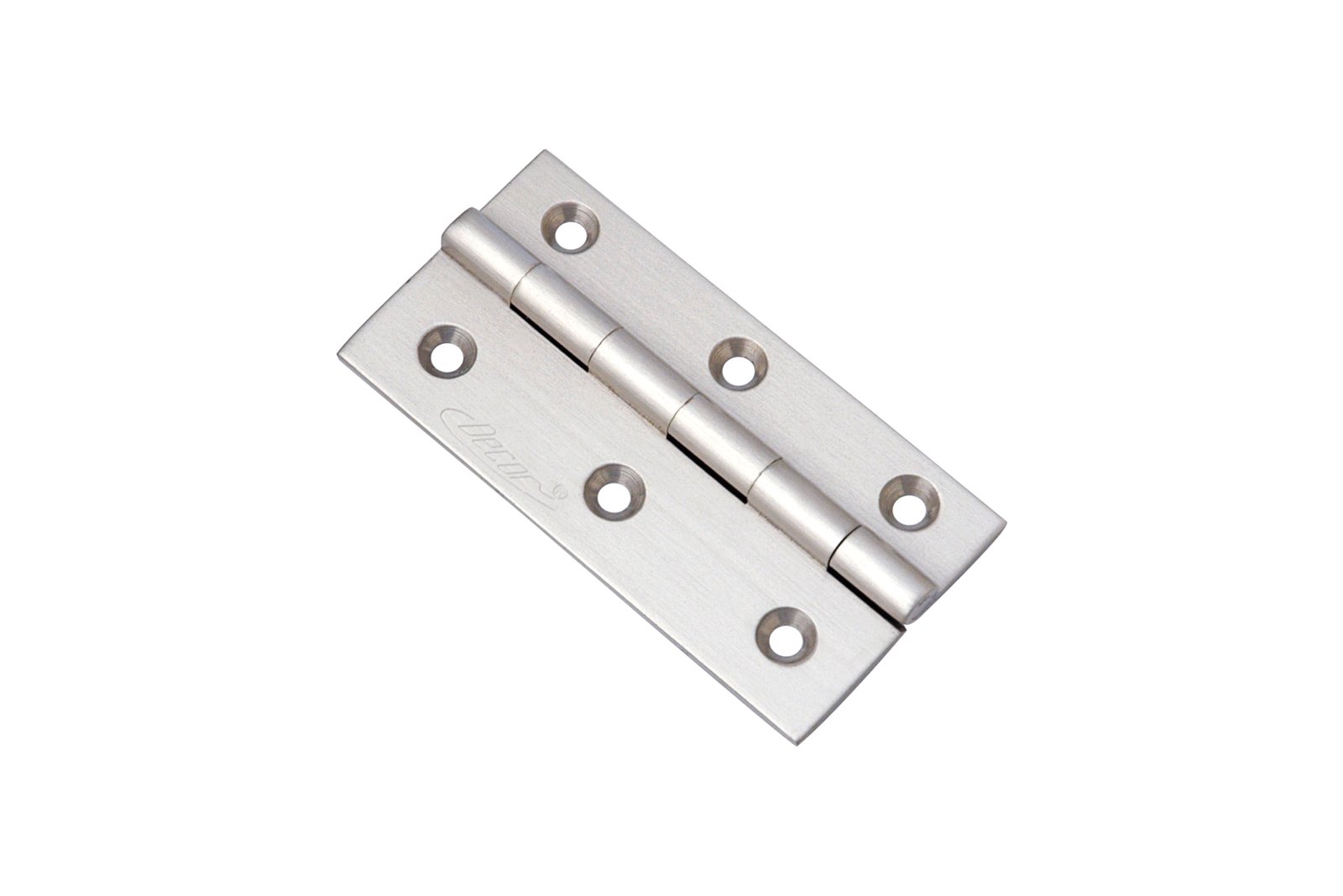

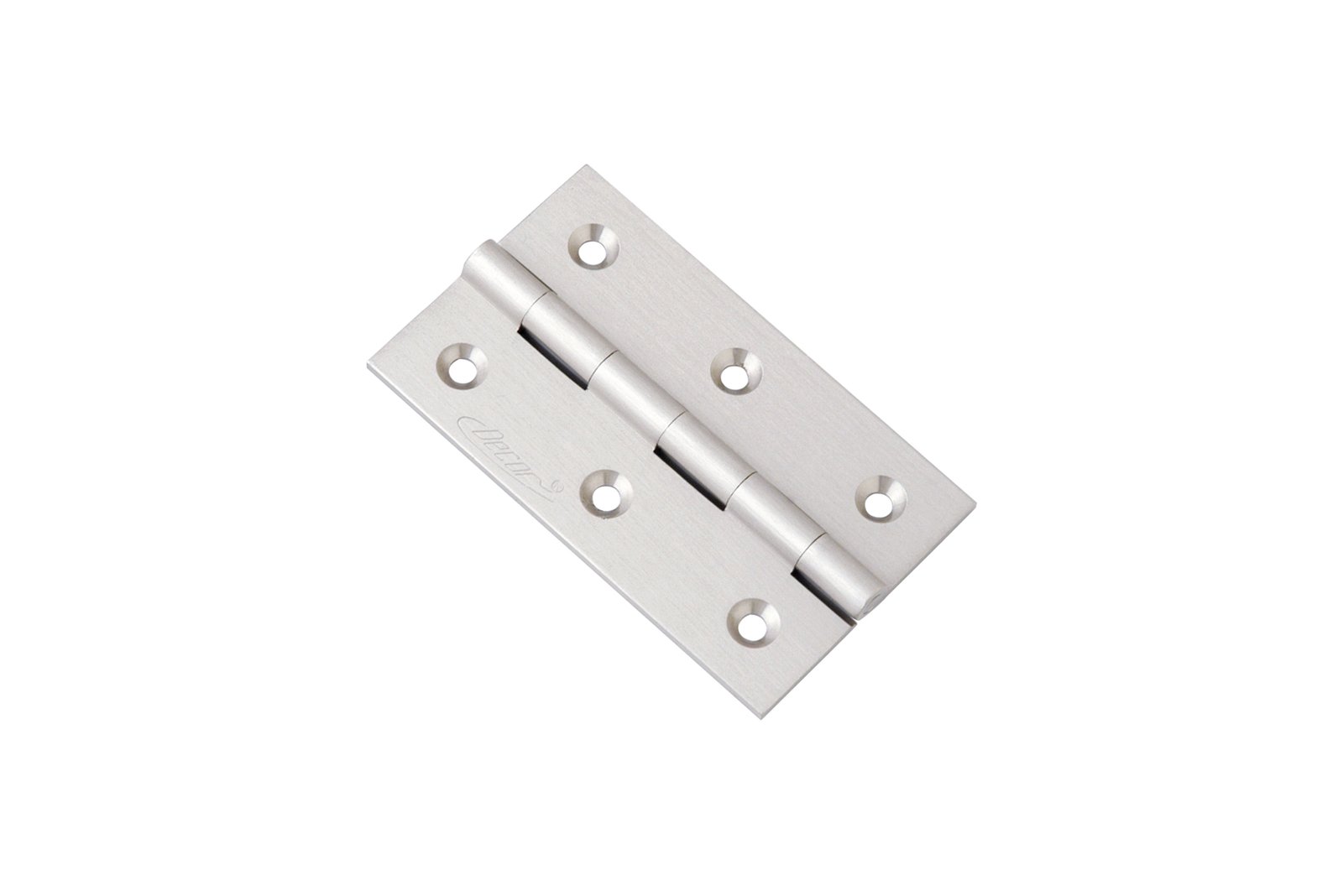

Butt Hinges

HBL

Cut Type Butt Hinges

HCL

CODE	SIZE IN MM (H × W)	SIZE IN INCH (H × W)
Butt Dia. 6(1/4) Thickness 2(3/32)
HCL 0316	75 × 9 × 16	3 × 3/8 × 5/8
HCL 0416	100 × 9 × 16	4 × 3/8 × 5/8
HCL 0319	75 × 9 × 19	3 × 3/8 × 3/4
HCL 0419	100 × 9 × 19	4 × 3/8 × 3/4
HCL 0325	75 × 9 × 25	3 × 3/8 × 1
HCL 0425	100 × 9 × 25	4 × 3/8 × 1
HCL 1319	75 × 12 × 19	3 × 1/2 × 3/4
HCL 1419	100 × 12 × 19	4 × 1/2 × 3/4
HCL 1325	75 × 12 × 25	3 × 1/2 × 1
HCL 1425	100 × 12 × 25	4 × 1/2 × 1
HCL 2325	75 × 19 × 25	3 × 3/4 × 1
HCL 2425	100 × 19 × 25	4 × 3/4 × 1
Available In Jet Black Finish

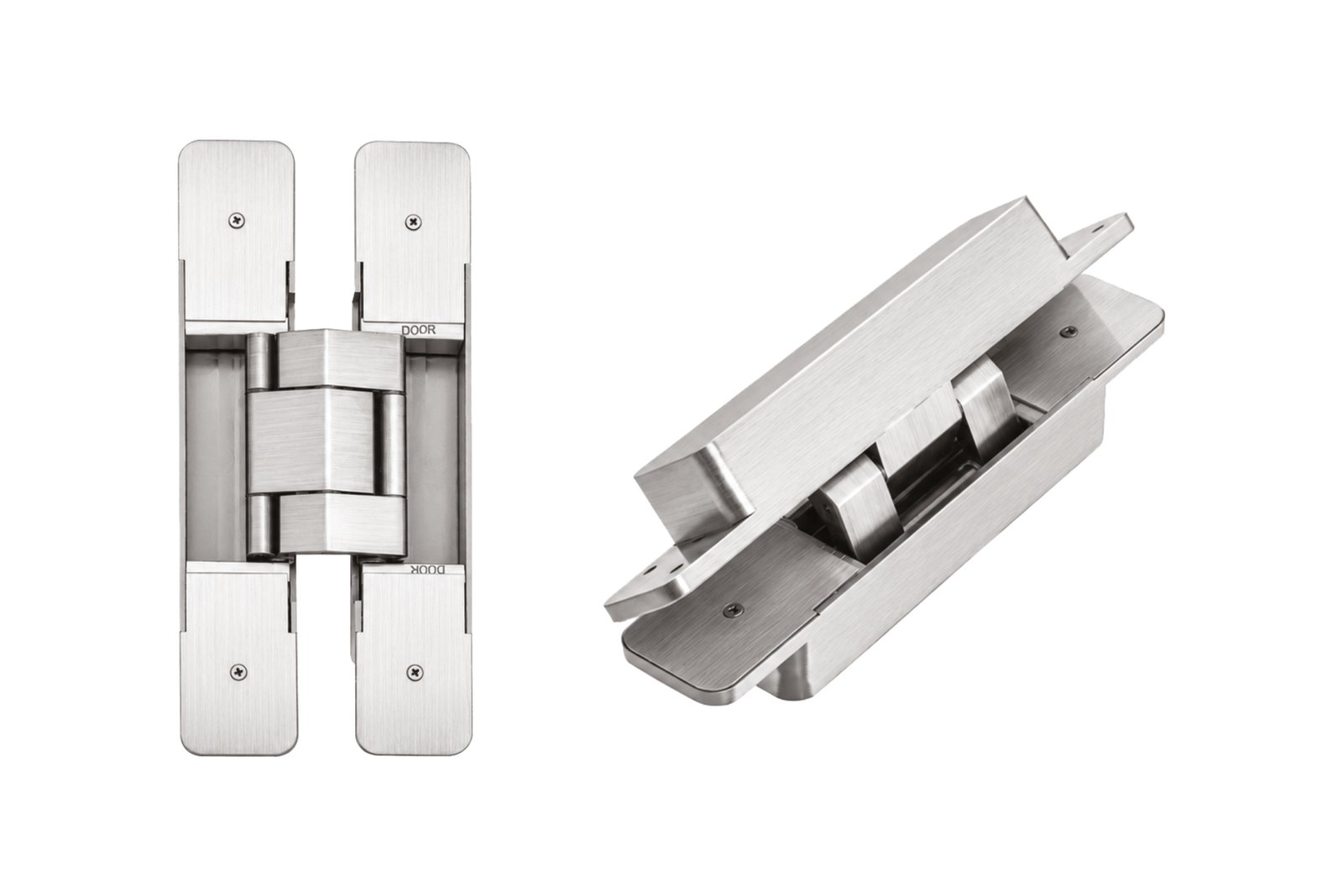

Concealed Hinges

CDH

CODE	SIZE
CDH 25	Small
CDH 38	Big
Available In Jet Black Finish

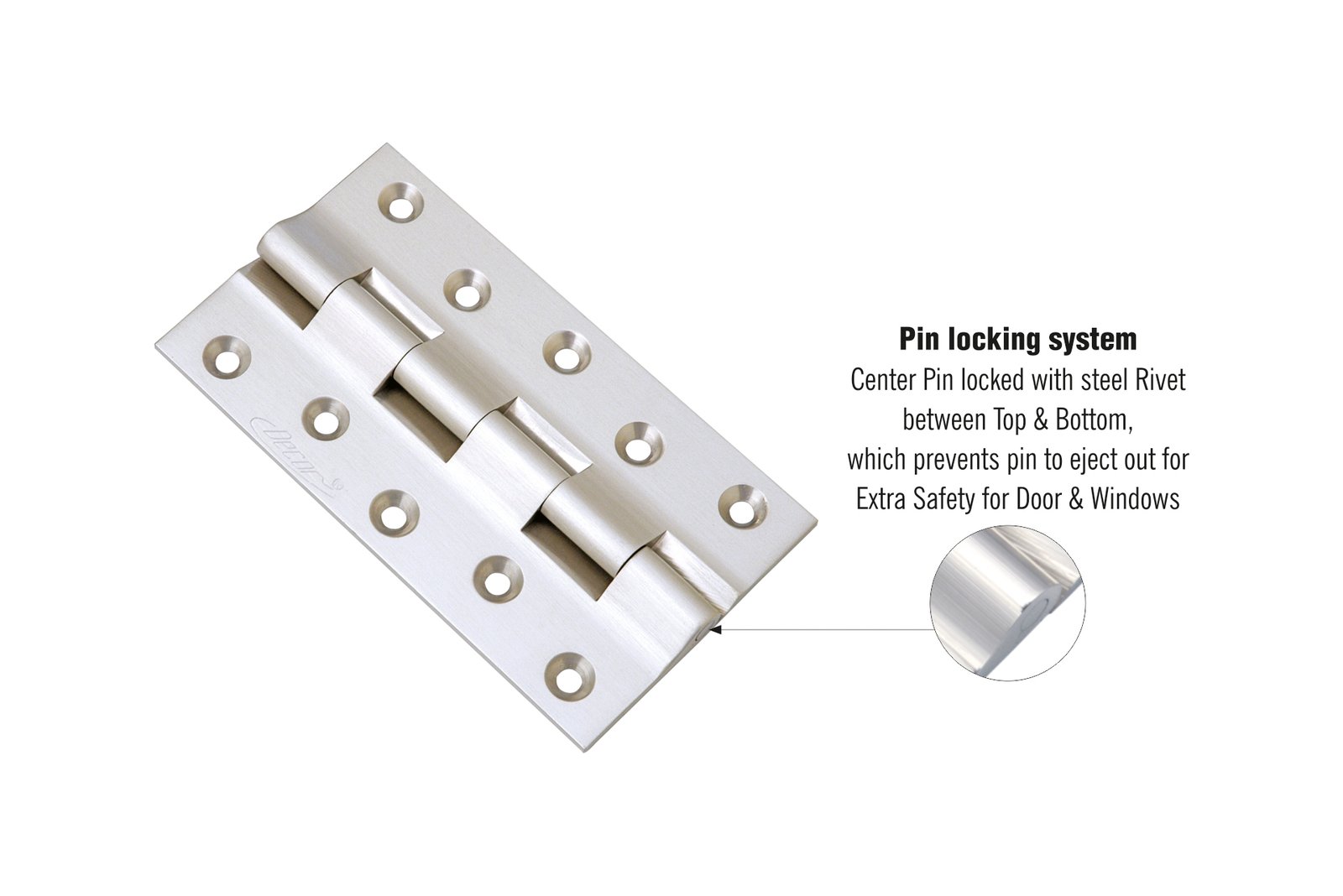

Railway Hinges

HR / EHR

CODE	SIZE IN MM (H × W)	SIZE IN INCH (H × W)
With SL - Butt Dia. 8(5/16) Thickness 3(1/8)
HR 8322	75 × 22	3 × 7/8
HR 8422	100 × 22	4 × 7/8
With SL - Butt Dia. 9(3/8) Thickness 3(1/8)
HR 9325	75 × 25	3 × 1
HR 9425	100 × 25	4 × 1
HR 9525	125 × 25	5 × 1
HR 9625	150 × 25	6 × 1
HR 9428	100 × 28	4 × 1.1/8
HR 9528	125 × 28	5 × 1.1/8
HR 9628	150 × 28	6 × 1.1/8
HR 9431	100 × 31	4 × 1.1/4
HR 9531	125 × 31	5 × 1.1/4
HR 9631	150 × 31	6 × 1.1/4
With SL - Butt Dia. 9(13/32) Thickness 3.5(9/64)
HR 1428	100 × 28	4 × 1.1/8
HR 1528	125 × 28	5 × 1.1/8
HR 1628	150 × 28	6 × 1.1/8
With SL - Butt Dia. 10(13/32) Thickness 4(5/32)
HR 425	100 × 25	4 × 1
HR 525	125 × 25	5 × 1
HR 428	100 × 28	4 × 1.1/8
HR 528	125 × 28	5 × 1.1/8
HR 628	150 × 28	6 × 1.1/8
HR 431	100 × 31	4 × 1.1/4
HR 531	125 × 31	5 × 1.1/4
HR 631	150 × 31	6 × 1.1/4
HR 538	125 × 38	5 × 1.1/2
HR 638	150 × 38	6 × 1.1/2
With SL - Butt Dia. 12(15/32) Thickness 4.5(3/16)
EHR 531	125 × 31	5 × 1.1/4
EHR 631	150 × 31	6 × 1.1/4
EHR 831	200 × 31	8 × 1.1/4
EHR 438	100 × 38	4 × 1.1/2
EHR 538	125 × 38	5 × 1.1/2
EHR 638	150 × 38	6 × 1.1/2
EHR 838	200 × 38	8 × 1.1/2
EHR 1038	250 × 38	10 × 1.1/2
EHR 1238	300 × 38	12 × 1.1/2
EHR 544	125 × 44	5 × 1.3/4
EHR 644	150 × 44	6 × 1.3/4
EHR 844	200 × 44	8 × 1.3/4
EHR 1044	250 × 44	10 × 1.3/4
EHR 1244	300 × 44	12 × 1.3/4
EHR 550	125 × 50	5 × 2
EHR 650	150 × 50	6 × 2
EHR 850	200 × 50	8 × 2
EHR 1050	250 × 50	10 × 2
EHR 1250	300 × 50	12 × 2
EHR 556	125 × 56	5 × 2.1/4
EHR 656	150 × 56	6 × 2.1/4
EHR 856	200 × 56	8 × 2.1/4
EHR 567	125 × 67	5 × 2.3/4
EHR 667	150 × 67	6 × 2.3/4
EHR 867	200 × 67	8 × 2.3/4
Available In Jet Black Finish

Reflex Hinges

CODE	SIZE IN MM (H × W)	SIZE IN INCH (H × W)
HR 1113	75	3
HR 1114	100	4
Available In Jet Black Finish

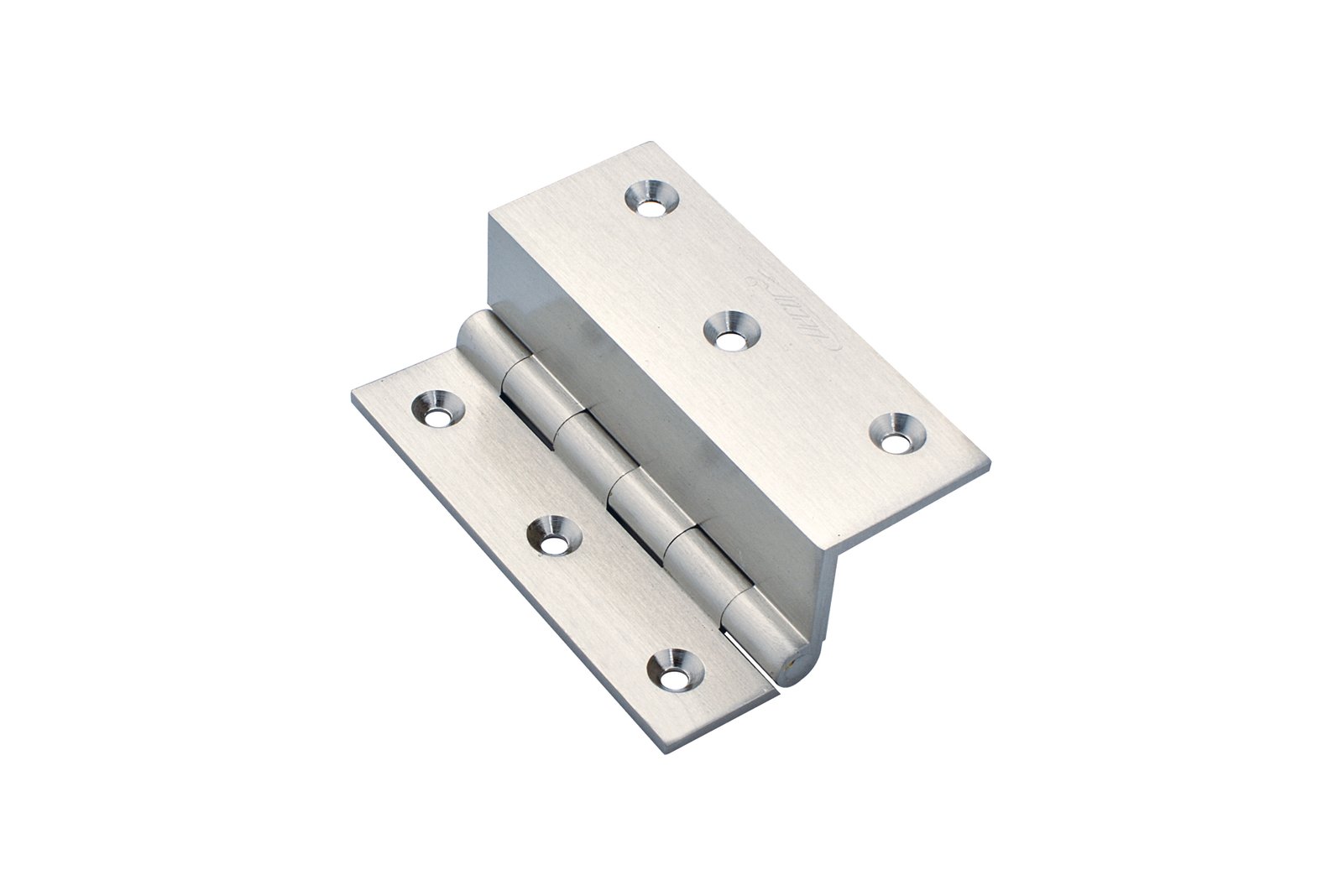

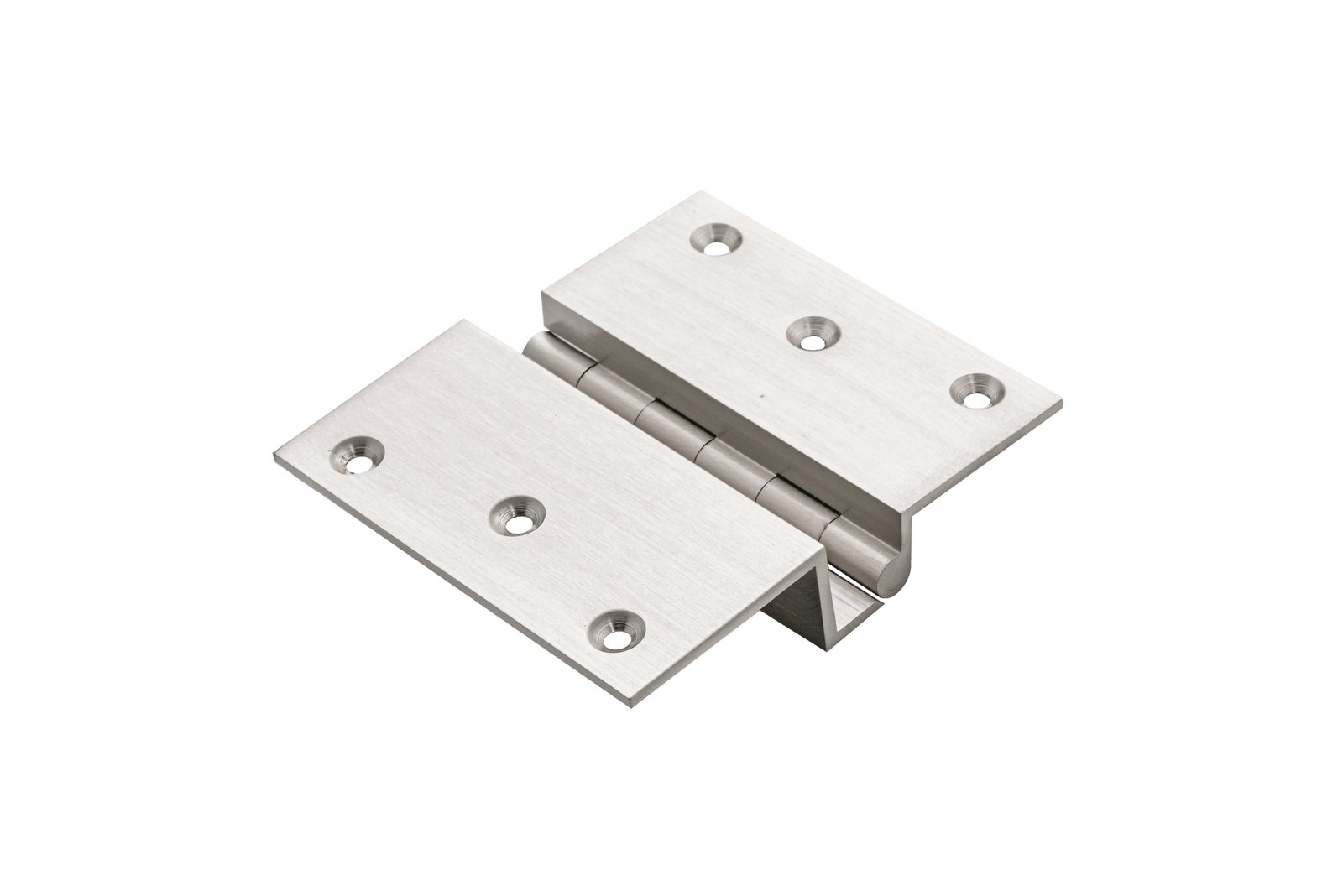

Z-Hinges

CODE	SIZE IN MM (H × W)	SIZE IN INCH (H × W)
ZH 312	75 × 12	3 × 1/2 × 12
ZH 412	100 × 12	4 × 1/2 × 12
ZH 319	75 × 19	3 × 3/4 × 19
ZH 419	100 × 19	4 × 3/4 × 19
ZH 325	75 × 25	3 × 1 × 25
ZH 425	100 × 25	4 × 1 × 25
Available In Jet Black Finish

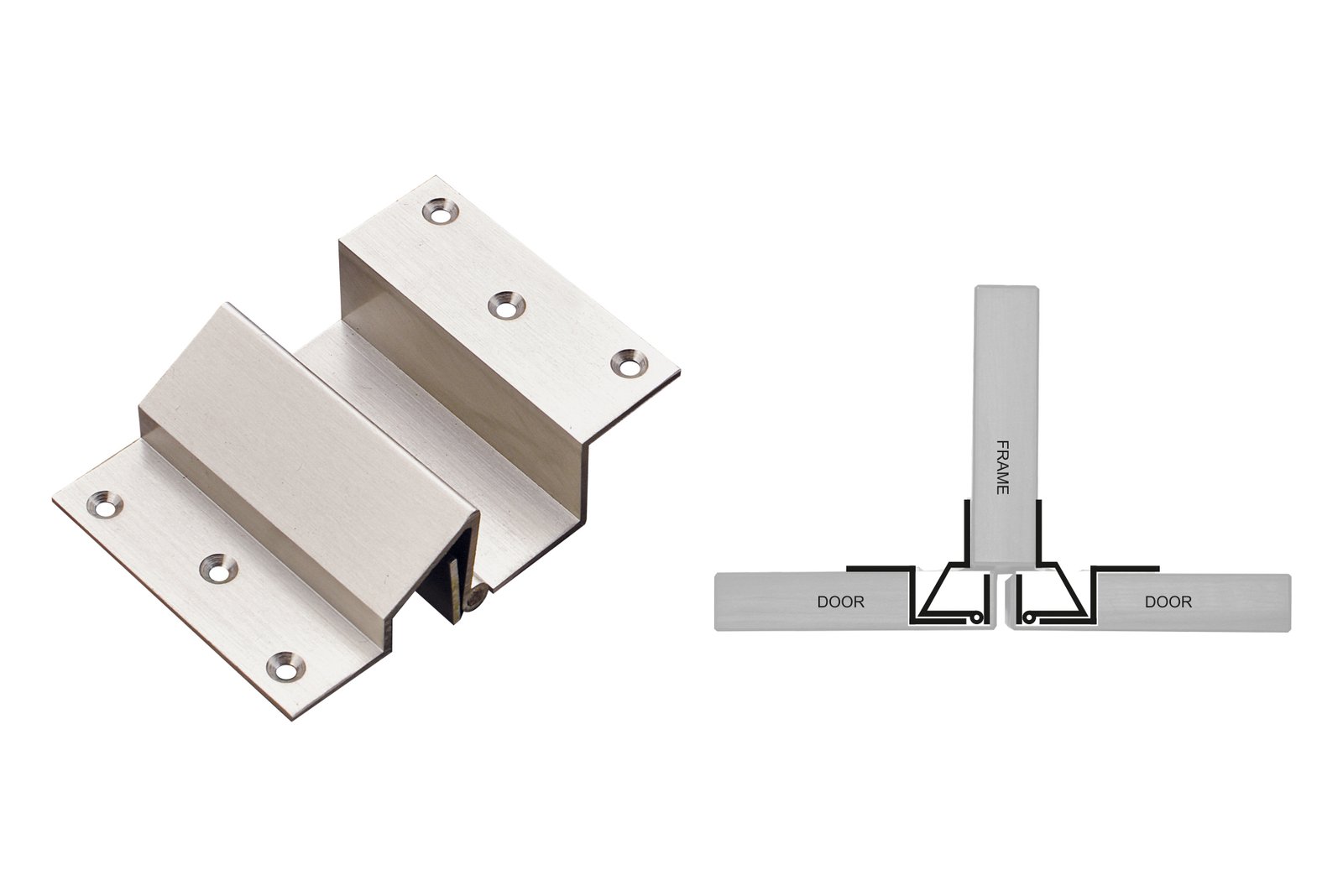

W-Hinges

CODE	SIZE IN MM (H × W)	SIZE IN INCH (H × W)
WH 075	75	3
WH 100	100	4
Available In Jet Black Finish

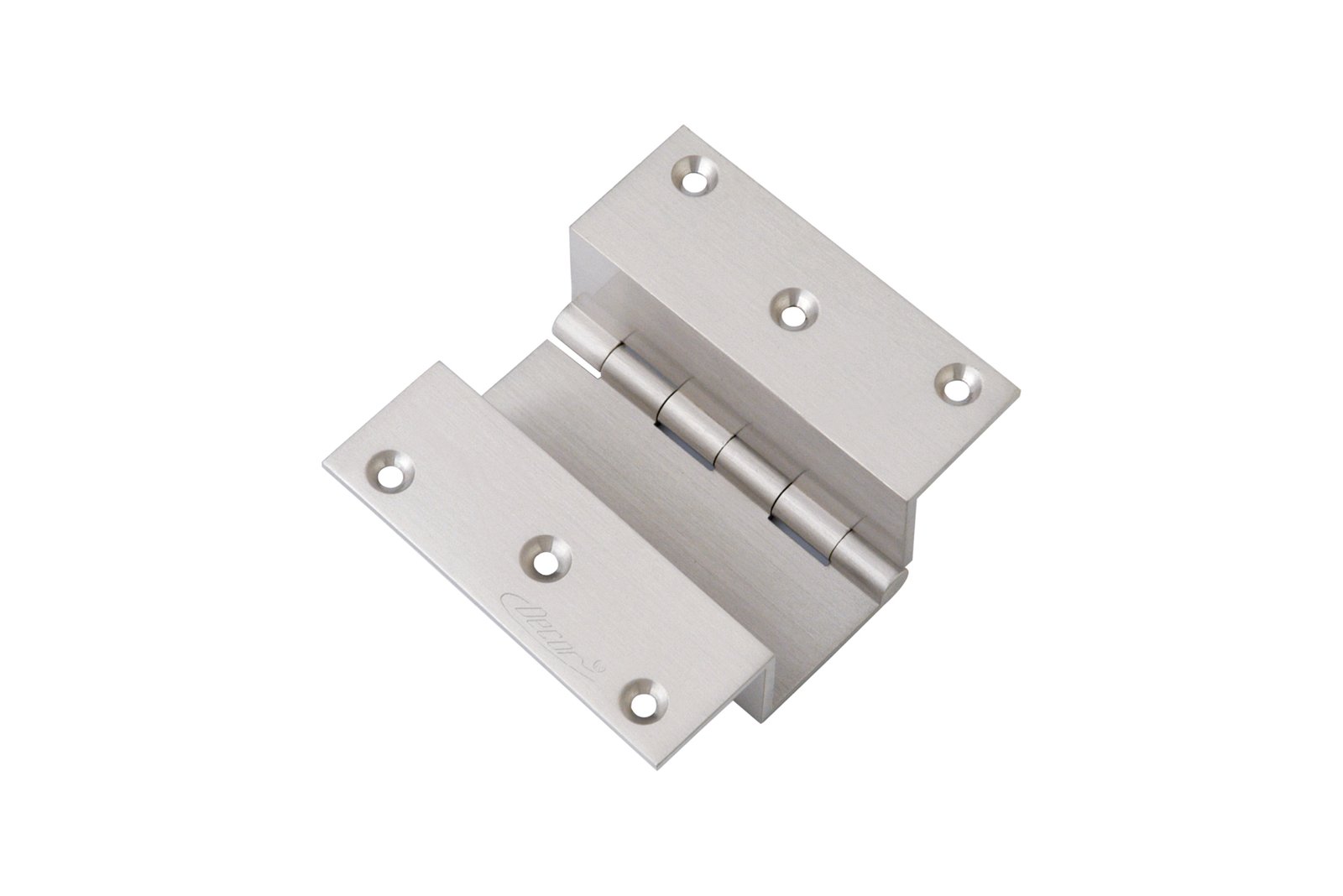

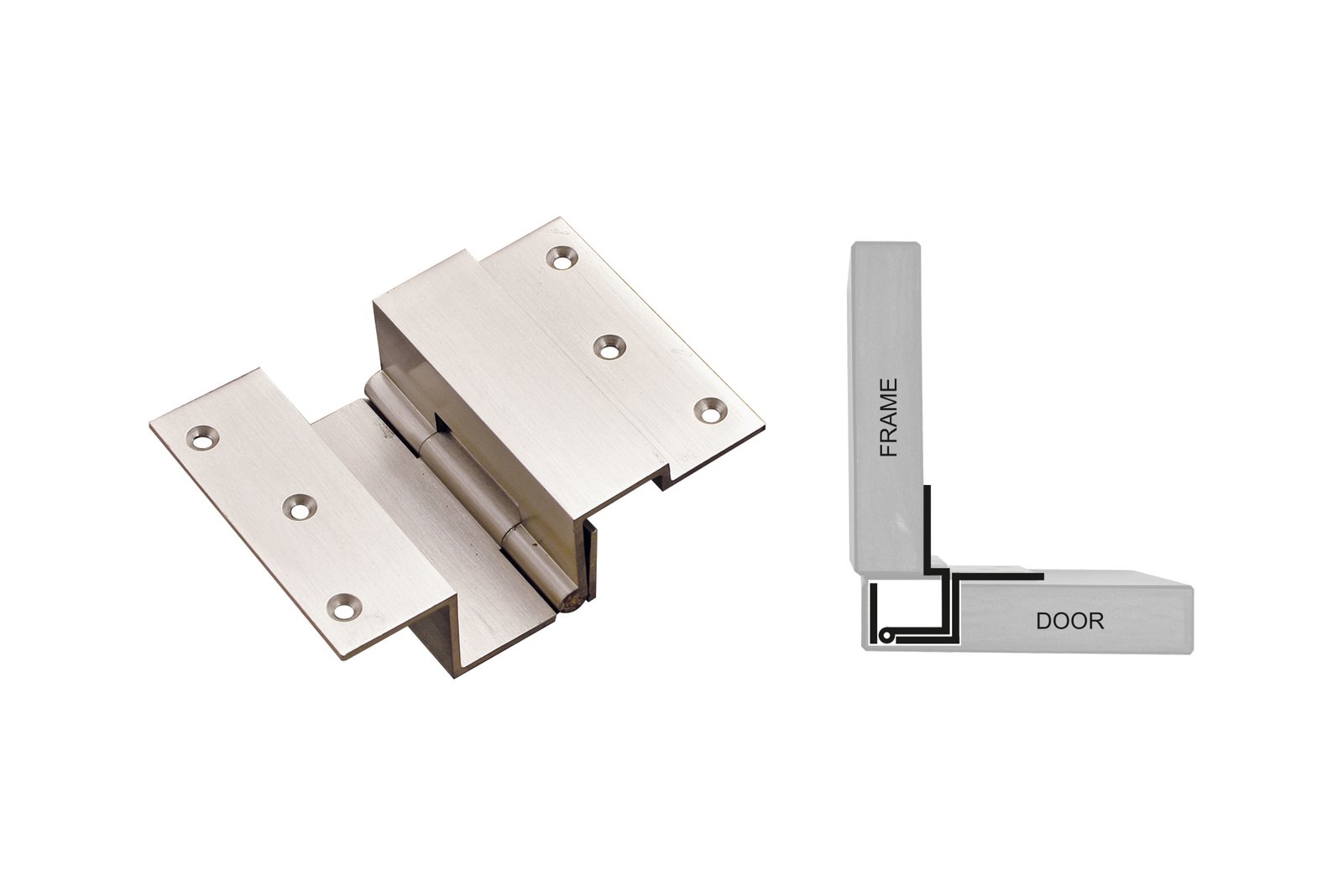

'W' Type Hinges

WTH

CODE	SIZE IN MM (H × W)	SIZE IN INCH (H × W)
WTH 3386	75 × 12 × 38	3 × 1/2 × 1.1/2 × 6
WTH 4386	100 × 12 × 38	4 × 1/2 × 1.1/2 × 6
WTH 3456	75 × 19 × 45	3 × 3/4 × 1.3/4 × 6
WTH 4456	100 × 19 × 45	4 × 3/4 × 1.3/4 × 6
WTH 3506	75 × 25 × 50	3 × 1 × 2 × 6
WTH 4506	100 × 25 × 50	4 × 1 × 2 × 6
WTH 33812	75 × 12 × 38	3 × 1/2 × 1.1/2 × 12
WTH 43812	100 × 12 × 38	4 × 1/2 × 1.1/2 × 12
WTH 34512	75 × 19 × 45	3 × 3/4 × 1.3/4 × 12
WTH 44512	100 × 19 × 45	4 × 3/4 × 1.3/4 × 12
WTH 35012	75 × 25 × 50	3 × 1 × 2 × 12
WTH 45012	100 × 25 × 50	4 × 1 × 2 × 12
WTH 33819	75 × 12 × 38	3 × 1/2 × 1.1/2 × 19
WTH 43819	100 × 12 × 38	4 × 1/2 × 1.1/2 × 19
WTH 34519	75 × 19 × 45	3 × 3/4 × 1.3/4 × 19
WTH 44519	100 × 19 × 45	4 × 3/4 × 1.3/4 × 19
WTH 35019	75 × 25 × 50	3 × 1 × 2 × 19
WTH 45019	100 × 25 × 50	4 × 1 × 2 × 19
WTH 33825	75 × 12 × 38	3 × 1/2 × 1.1/2 × 25
WTH 43825	100 × 12 × 38	4 × 1/2 × 1.1/2 × 25
WTH 34525	75 × 19 × 45	3 × 3/4 × 1.3/4 × 25
WTH 44525	100 × 19 × 45	4 × 3/4 × 1.3/4 × 25
WTH 35025	75 × 25 × 50	3 × 1 × 2 × 25
WTH 45025	100 × 25 × 50	4 × 1 × 2 × 25
Available In Jet Black Finish

Full Overlay 'L' Hinges

OVDF

CODE	SIZE IN MM (H × W)	SIZE IN INCH (H × W)
OVDF 21919	50 × 19 × 19	2 × 3/4 × 3/4
OVDF 31919	75 × 19 × 19	3 × 3/4 × 3/4
OVDF 41919	100 × 19 × 19	4 × 3/4 × 3/4
OVDF 31925	75 × 19 × 25	3 × 3/4 × 1
OVDF 41925	100 × 19 × 25	4 × 3/4 × 1
OVDF 32525	75 × 25 × 25	3 × 1 × 1
OVDF 42525	100 × 25 × 25	4 × 1 × 1
OVDF 32519	75 × 25 × 19	3 × 1 × 3/4
OVDF 42519	100 × 25 × 19	4 × 1 × 3/4
OVDF 33019	75 × 30 × 19	3 × 1.1/4 × 3/4
OVDF 33025	75 × 30 × 25	3 × 1.1/4 × 1
OVDF 43025	100 × 30 × 25	4 × 1.1/4 × 1
OVDF 33525	75 × 35 × 25	3 × 1.1/2 × 1
OVDF 43525	100 × 35 × 25	4 × 1.1/2 × 1

Half Overlay 'L' Hinges

OVDH

CODE	SIZE IN MM (H × W)	SIZE IN INCH (H × W)
OVDH 21919	50 × 19 × 19	2 × 3/4 × 3/4
OVDH 31919	75 × 19 × 19	3 × 3/4 × 3/4
OVDH 41919	100 × 19 × 19	4 × 3/4 × 3/4
OVDH 31925	75 × 19 × 25	3 × 3/4 × 1
OVDH 41925	100 × 19 × 25	4 × 3/4 × 1
OVDH 32525	75 × 25 × 25	3 × 1 × 1
OVDH 42525	100 × 25 × 25	4 × 1 × 1
OVDH 32519	75 × 25 × 19	3 × 1 × 3/4
OVDH 42519	100 × 25 × 19	4 × 1 × 3/4
OVDH 33019	75 × 30 × 19	3 × 1.1/4 × 1
OVDH 33525	75 × 35 × 25	3 × 1.1/2 × 1
OVDH 43525	100 × 35 × 25	4 × 1.1/2 × 1

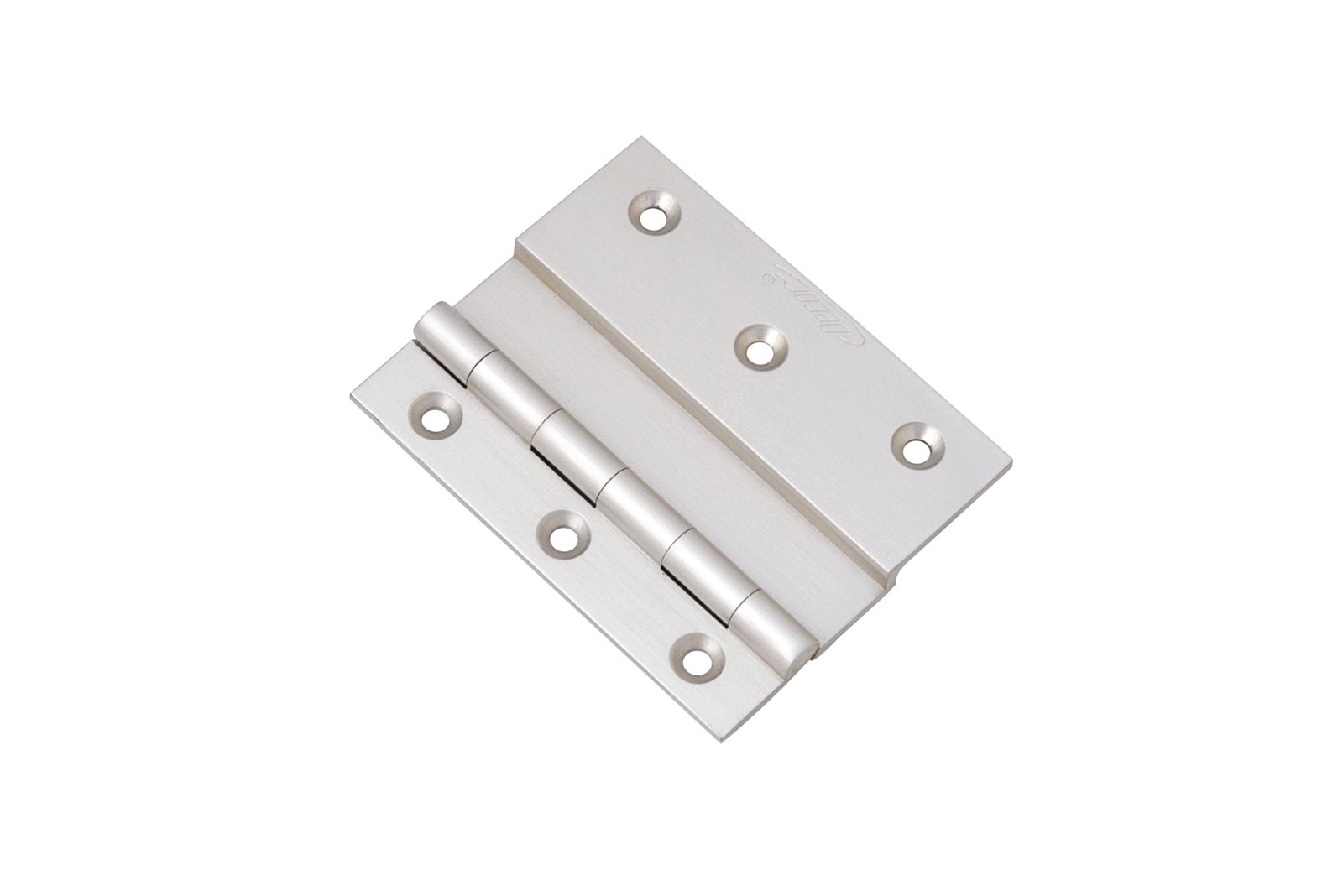

'L' Hinges

LHB

CODE	SIZE IN MM (H × W)	SIZE IN INCH (H × W)
LHB 1331	75 × 9 × 31	3 × 3/8 × 1.1/4 × 6
LHB 1431	100 × 9 × 31	4 × 3/8 × 1.1/4 × 6
LHB 1338	75 × 12 × 38	3 × 1/2 × 1.1/2 × 6
LHB 1438	100 × 12 × 38	4 × 1/2 × 1.1/2 × 6
LHB 1316	75 × 16 × 38	3 × 5/8 × 1.1/2 × 6
LHB 1416	100 × 16 × 38	4 × 5/8 × 1.1/2 × 6
LHB 2338	75 × 19 × 45	3 × 3/4 × 1.3/4 × 6
LHB 2438	100 × 19 × 45	4 × 3/4 × 1.3/4 × 6
LHB 3126	75 × 25 × 50	3 × 1 × 2 × 6
LHB 4126	100 × 25 × 50	4 × 1 × 2 × 6
LHB 33112	75 × 9 × 31	3 × 3/8 × 1.1/4 × 12
LHB 43112	100 × 9 × 31	4 × 3/8 × 1.1/4 × 12
LHB 33812	75 × 12 × 38	3 × 1/2 × 1.1/2 × 12
LHB 43812	100 × 12 × 38	4 × 1/2 × 1.1/2 × 12
LHB 31612	75 × 16 × 38	3 × 5/8 × 1.1/2 × 12
LHB 41612	100 × 16 × 38	4 × 5/8 × 1.1/2 × 12
LHB 34512	75 × 19 × 45	3 × 3/4 × 1.3/4 × 12
LHB 44512	100 × 19 × 45	4 × 3/4 × 1.3/4 × 12
LHB 31212	75 × 25 × 50	3 × 1 × 2 × 12
LHB 41212	100 × 25 × 50	4 × 1 × 2 × 12
LHB 33119	75 × 9 × 31	3 × 3/8 × 1.1/4 × 19
LHB 43119	100 × 9 × 31	4 × 3/8 × 1.1/4 × 19
LHB 33819	75 × 12 × 38	3 × 1/2 × 1.1/2 × 19
LHB 43819	100 × 12 × 38	4 × 1/2 × 1.1/2 × 19
LHB 31619	75 × 16 × 38	3 × 5/8 × 1.1/2 × 19
LHB 41619	100 × 16 × 38	4 × 5/8 × 1.1/2 × 19
LHB 34519	75 × 19 × 45	3 × 3/4 × 1.3/4 × 19
LHB 44519	100 × 19 × 45	4 × 3/4 × 1.3/4 × 19
LHB 31219	75 × 25 × 50	3 × 1 × 2 × 19
LHB 41219	100 × 25 × 50	4 × 1 × 2 × 19
LHB 33125	75 × 9 × 31	3 × 3/8 × 1.1/4 × 25
LHB 43125	100 × 9 × 31	4 × 3/8 × 1.1/4 × 25
LHB 33825	75 × 12 × 38	3 × 1/2 × 1.1/2 × 25
LHB 43825	100 × 12 × 38	4 × 1/2 × 1.1/2 × 25
LHB 31625	75 × 16 × 38	3 × 5/8 × 1.1/2 × 25
LHB 41625	100 × 16 × 38	4 × 5/8 × 1.1/2 × 25
LHB 34525	75 × 19 × 45	3 × 3/4 × 1.3/4 × 25
LHB 44525	100 × 19 × 45	4 × 3/4 × 1.3/4 × 25
LHB 31225	75 × 25 × 50	3 × 1 × 2 × 25
LHB 41225	100 × 25 × 50	4 × 1 × 2 × 25
Available In Jet Black Finish

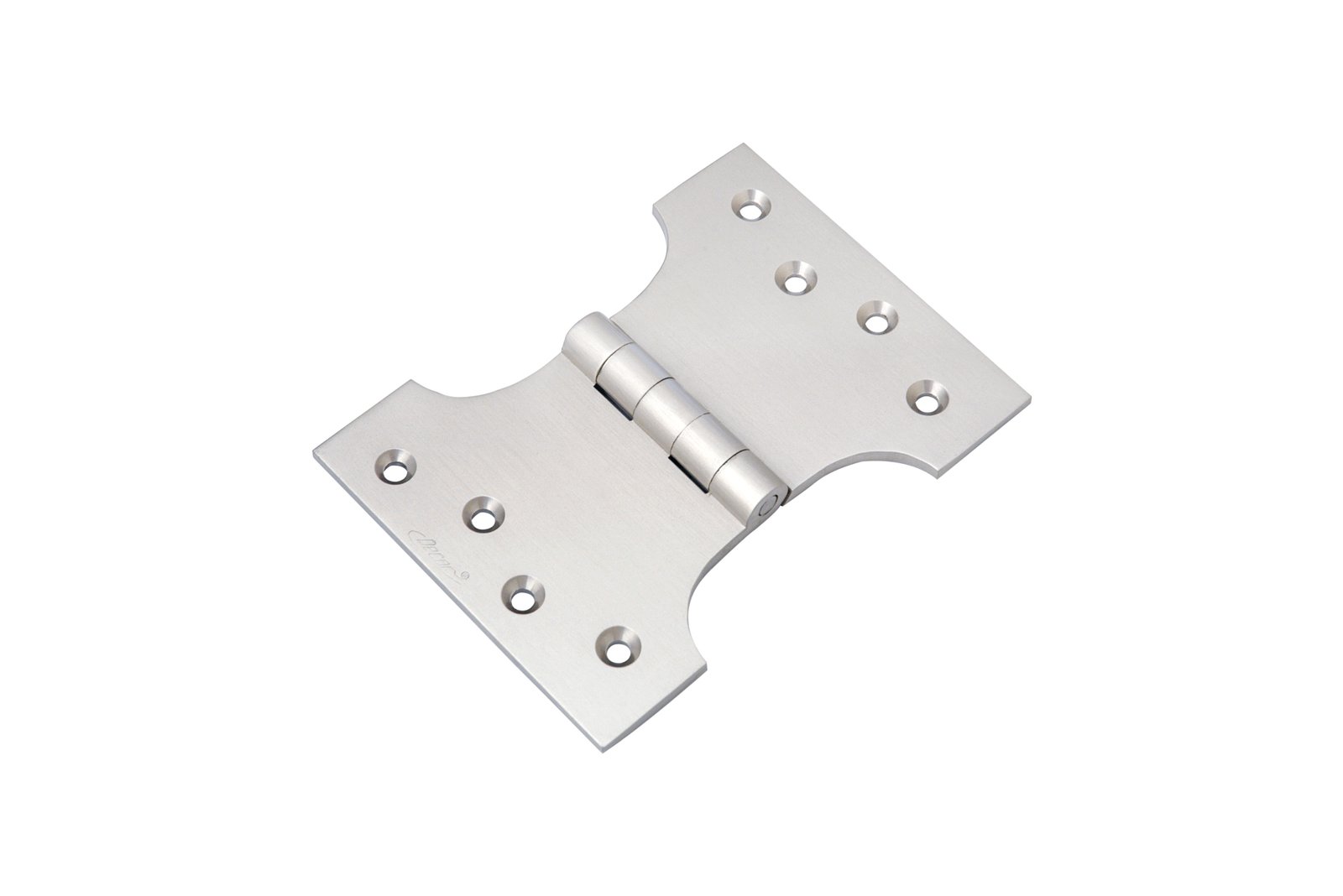

Parliament Hinges

CODE	SIZE IN MM (H × W)	SIZE IN INCH (H × W)
PH 7550	75 × 50	3 × 2
PH 7575	75 × 75	3 × 3
PH 10050	100 × 50	4 × 2
PH 10075	100 × 75	4 × 3
PH 100100	100 × 100	4 × 4
PH 100125	100 × 125	4 × 5
PH 100150	100 × 150	4 × 6
PH 100200	100 × 200	4 × 8
PH 125100	125 × 100	5 × 4
PH 125125	125 × 125	5 × 5
PH 125150	125 × 150	5 × 6
PH 125200	125 × 200	5 × 8
PH 125250	125 × 250	5 × 10
Available In Jet Black Finish

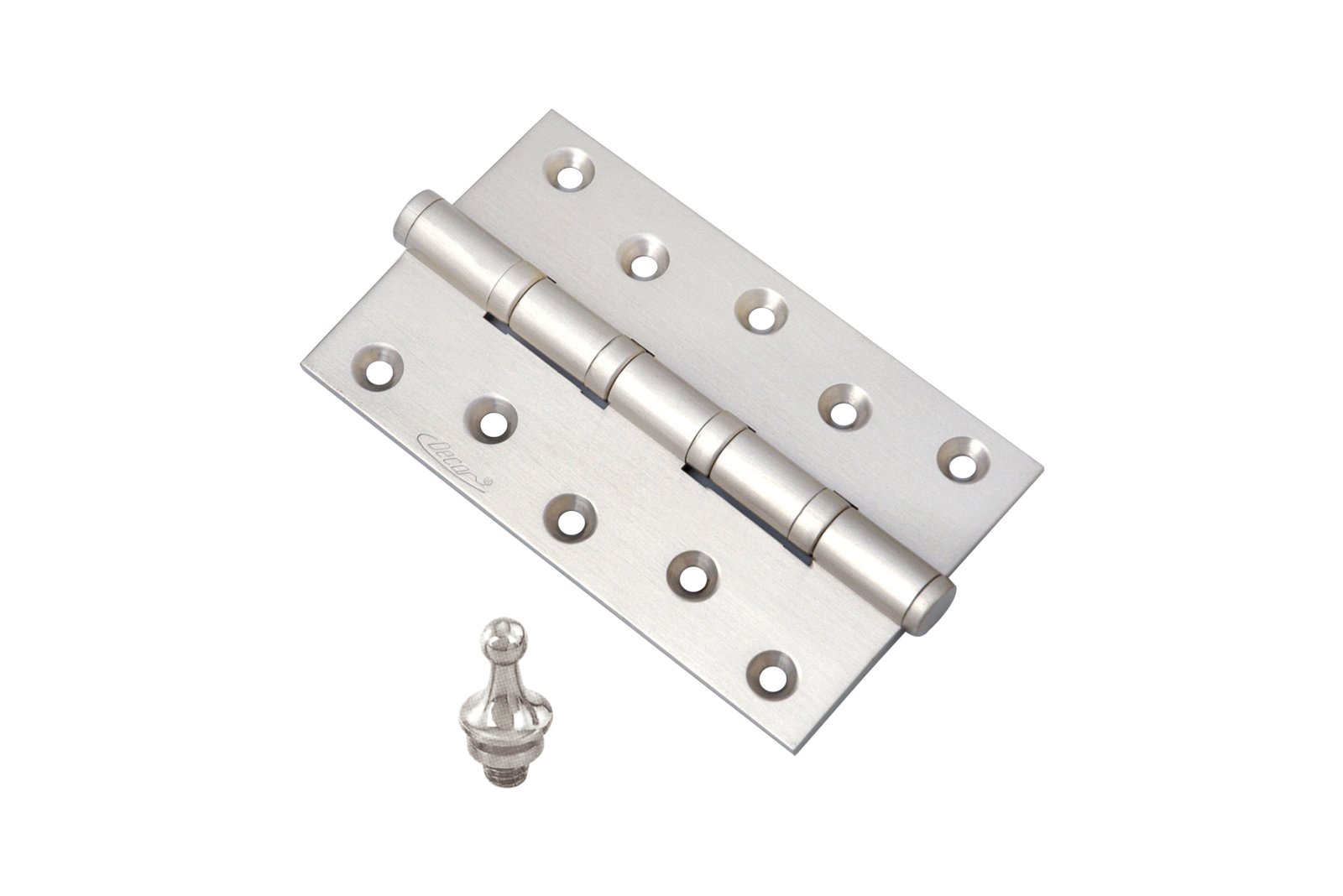

Bearing Hinges with Doom/Flat Top

CODE	SIZE IN MM (H × W)	SIZE IN INCH (H × W)
(4 Bearing) Butt Dia. 12(15/32), Thickness 3(1/8)
HB 3475	100 × 75	4 × 3
HB 3575	125 × 75	5 × 3
HB 3675	150 × 75	6 × 3
(4 Bearing) Butt Dia. 12(15/32), Thickness 4(5/32)
HB 4475	100 × 75	4 × 3
HB 4575	125 × 75	5 × 3
HB 4675	150 × 75	6 × 3
(4 Bearing) Butt Dia. 16(5/8), Thickness 5(13/64)
HB 5575	125 × 75	5 × 3
HB 5675	150 × 75	6 × 3
HB 5875	200 × 75	8 × 3
HB 5588	125 × 88	5 × 3.1/2
HB 5688	150 × 88	6 × 3.1/2
HB 5888	200 × 88	8 × 3.1/2
HB 51088	250 × 88	10 × 3.1/2
HB 51288	300 × 88	12 × 3.1/2
HB 55100	125 × 100	5 × 4
HB 56100	150 × 100	6 × 4
HB 58100	200 × 100	8 × 4
HB 510100	250 × 100	10 × 4
HB 512100	300 × 100	12 × 4
HB 56125	150 × 125	6 × 5
HB 58125	200 × 125	8 × 5
HB 510125	250 × 125	10 × 5
HB 512125	300 × 125	12 × 5
HB 58150	200 × 150	8 × 6
HB 510150	250 × 150	10 × 6
HB 512150	300 × 150	12 × 6
Available In Jet Black Finish

CODE	SIZE IN MM (H × W)	SIZE IN INCH (H × W)
Butt Dia. 6(1/4) Thickness 2(3/32)
HBL 312	75 × 12	3 × 1/2
HBL 412	100 × 12	4 × 1/2
HBL 309	75 × 9	3 × 3/8
HBL 316	75 × 16	3 × 5/8
HBL 416	100 × 16	4 × 5/8
HBL 319	75 × 19	3 × 3/4
HBL 419	100 × 19	4 × 3/4
HBL 322	75 × 22	3 × 7/8
HBL 422	100 × 22	4 × 7/8
HBL 325	75 × 25	3 × 1
HBL 425	100 × 25	4 × 1
Available In Jet Black Finish
